PCHelpware Introduction

Download PCHelpware components (in Zip file format)

PCHelpware is basically made of three parts:
+A Viewer that is used to remote control a distant PC
+A Server that runs on the distant PC
+An optional Repeater that helps the Viewer and the Server to connect together. It is actually a mediation-proxy service.
Viewer and Server can be customized to fit your needs (see Part 3, Part 4 and Customization pages)
PcHelpware has two main connectivity schemes:
+Direct connection(can be used when only the server PC is behind a NAT router or simply not directly reachable)Server -> Viewer
+Connection through a repeater (can be used when both Viewer and Server PCs are behind their own NAT router)Server -> Repeater <- Viewer
Notes:
- PC standing behind a NAT means that this PC can't be easily reached from outside (from the Internet)
- You must run the Viewer on your machine. The individual you want to help must run the Server on his machine. Even if this machine is behind a NAT the connection can be done because this connection is initiated by the Server from behind the NAT router to the Viewer over the internet.
See Part 2 for more details on connection modes and settings
.

PCHelpware Zip file contents

zipfile



> Folders

- Connections:
This folder is used the save Viewer profiles
- Create_server:
This folder contain the needed files to generate the customized server exe
- Drivers:
If you wish to speedup your connections, you can install special Mirror Drivers under Windows 2000, XP and Vista.
- My Servers:
In this folder you find the generated servers. The servers are saved in a sub folder with the same name then the Viewer profile
- Repeater:
This folder contains the Repeater. An instance is most time running on the uvnc.com server
- Server_res:
Contain the background and icon of the server exe. Can be customized.

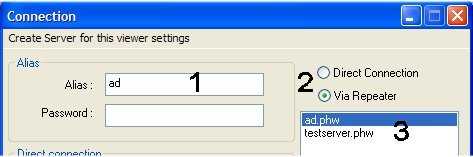

pchelpware viewer dialog



PcHelpware_viewer.exe

This is the profile name used to save the viewer A "Direct Connection" is a connection between server and viewer, "Via Repeater" uses the repeater as a proxy List of saved viewer profiles.
